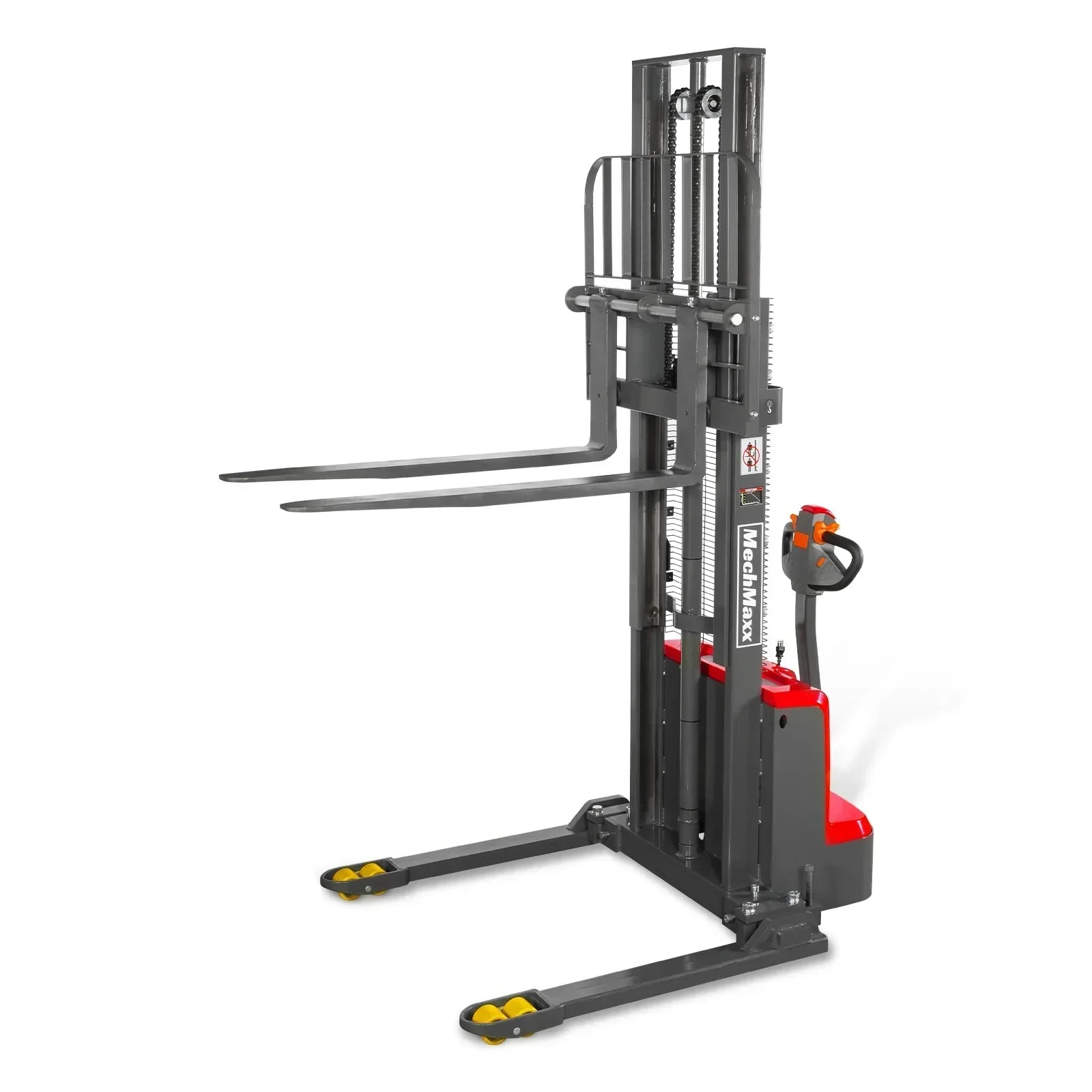

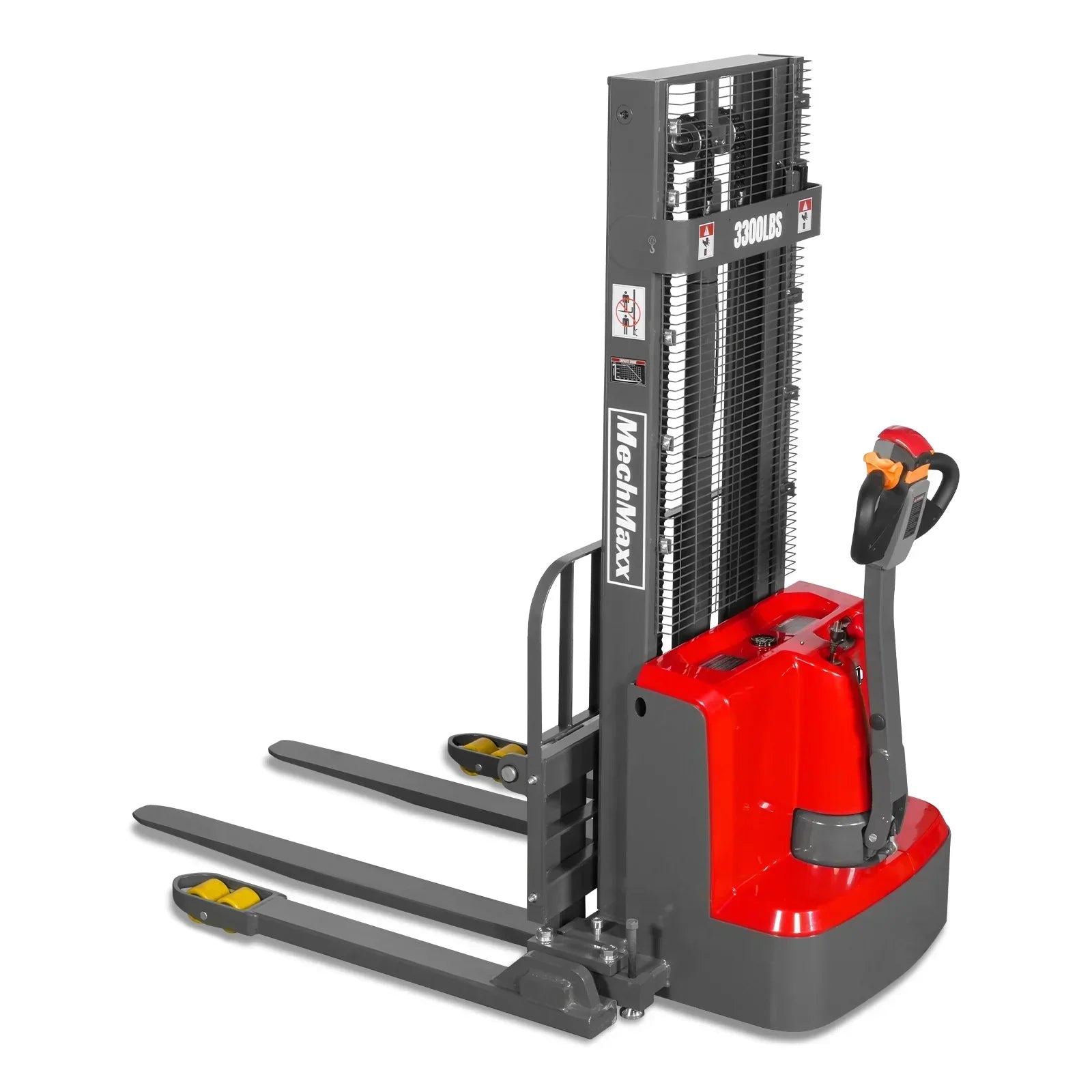

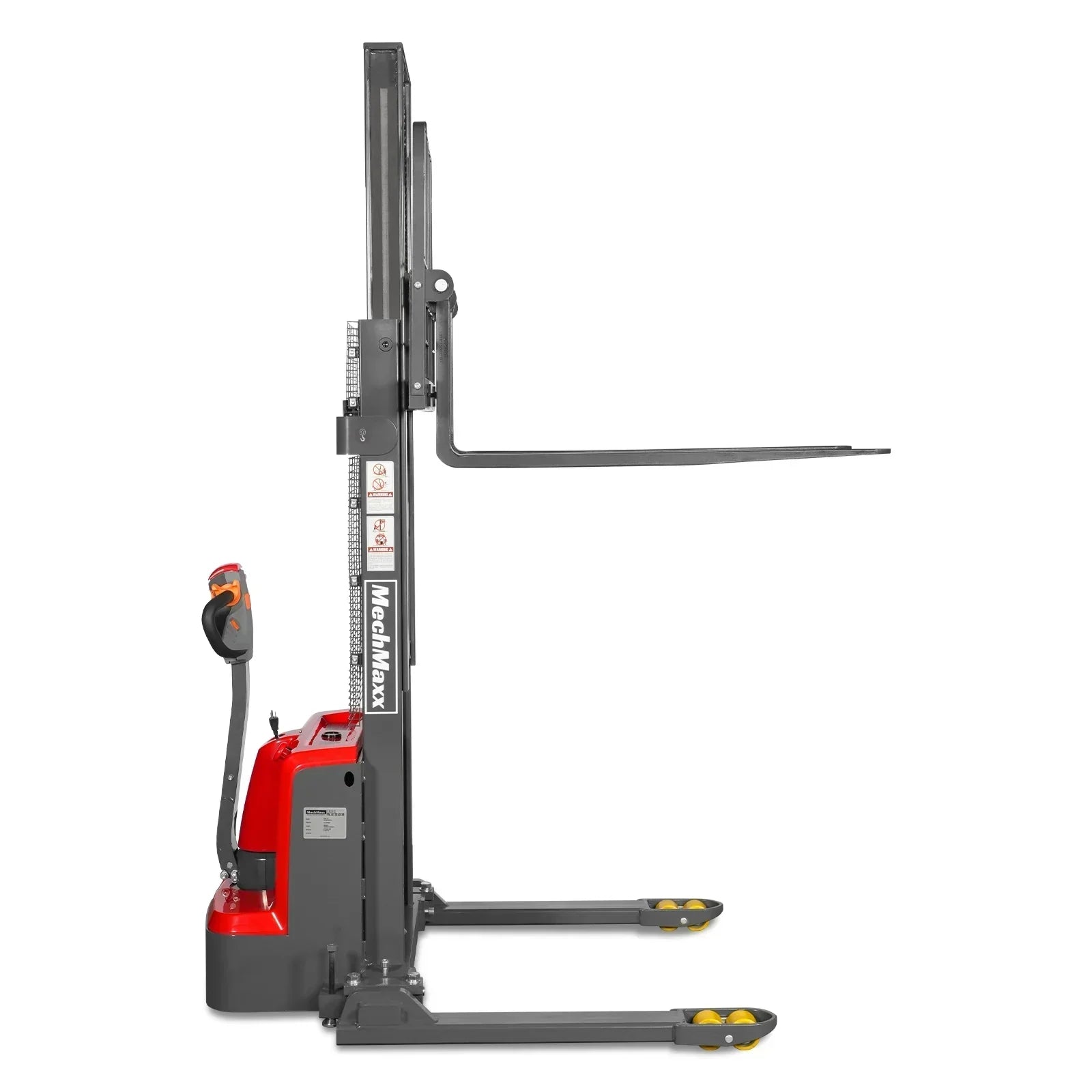

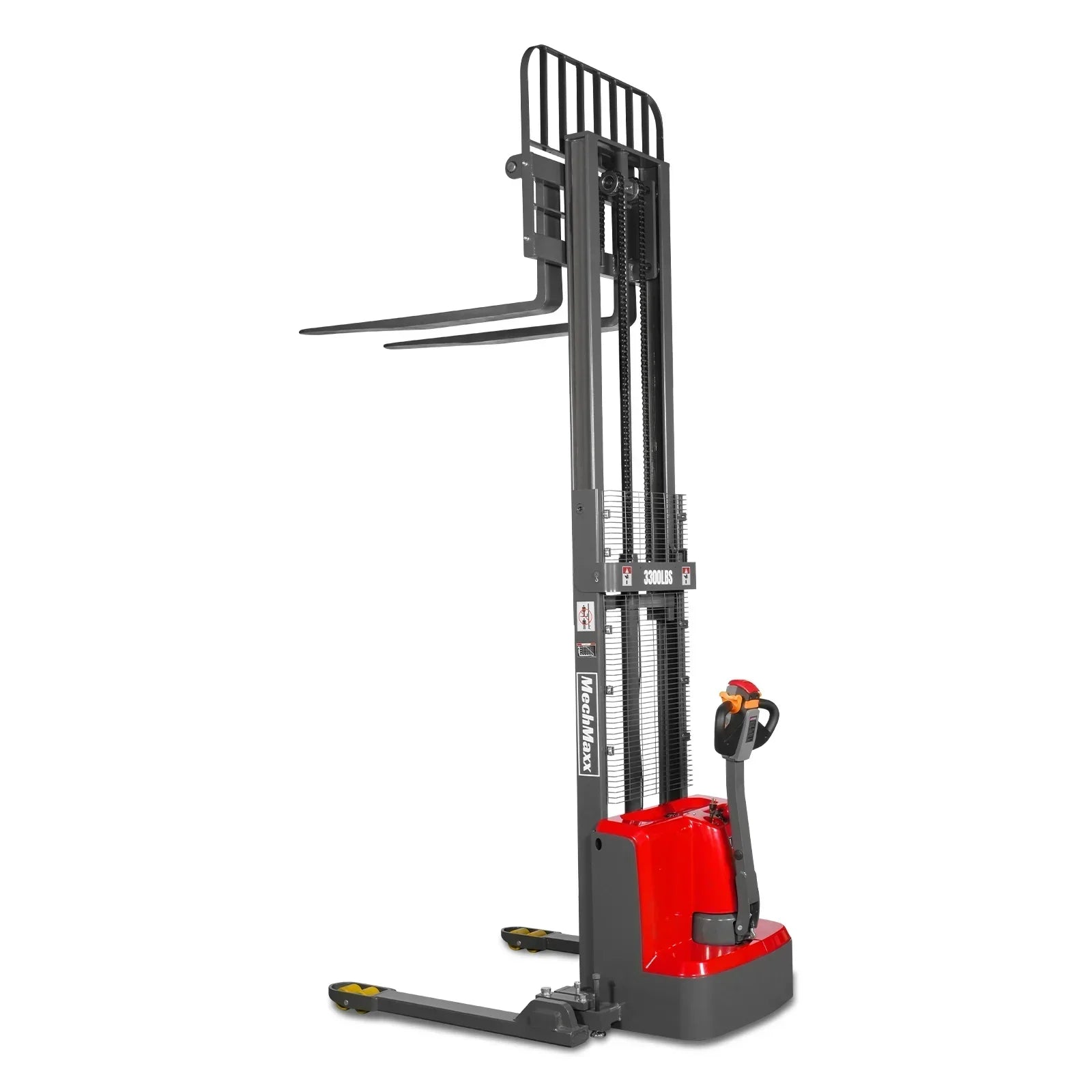

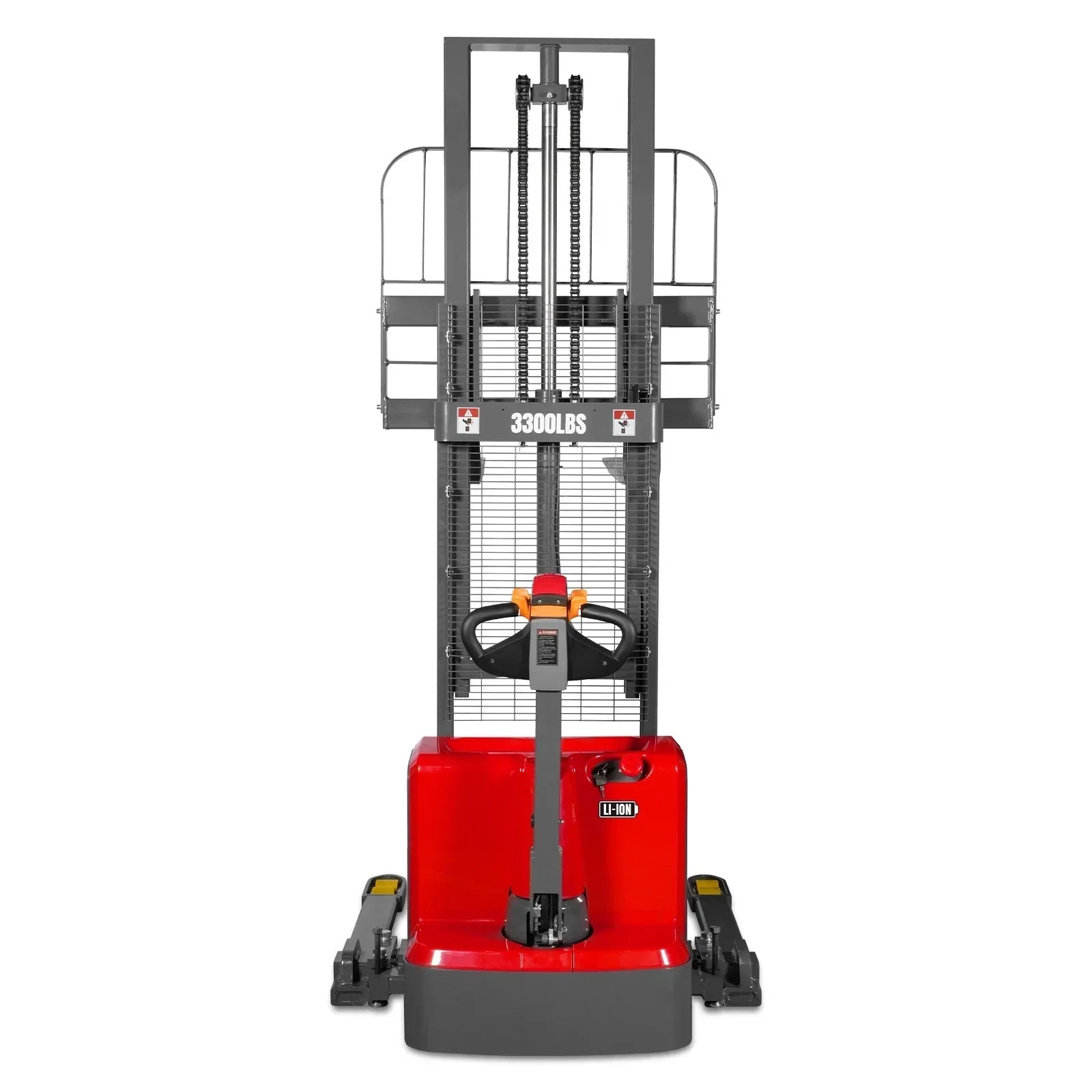

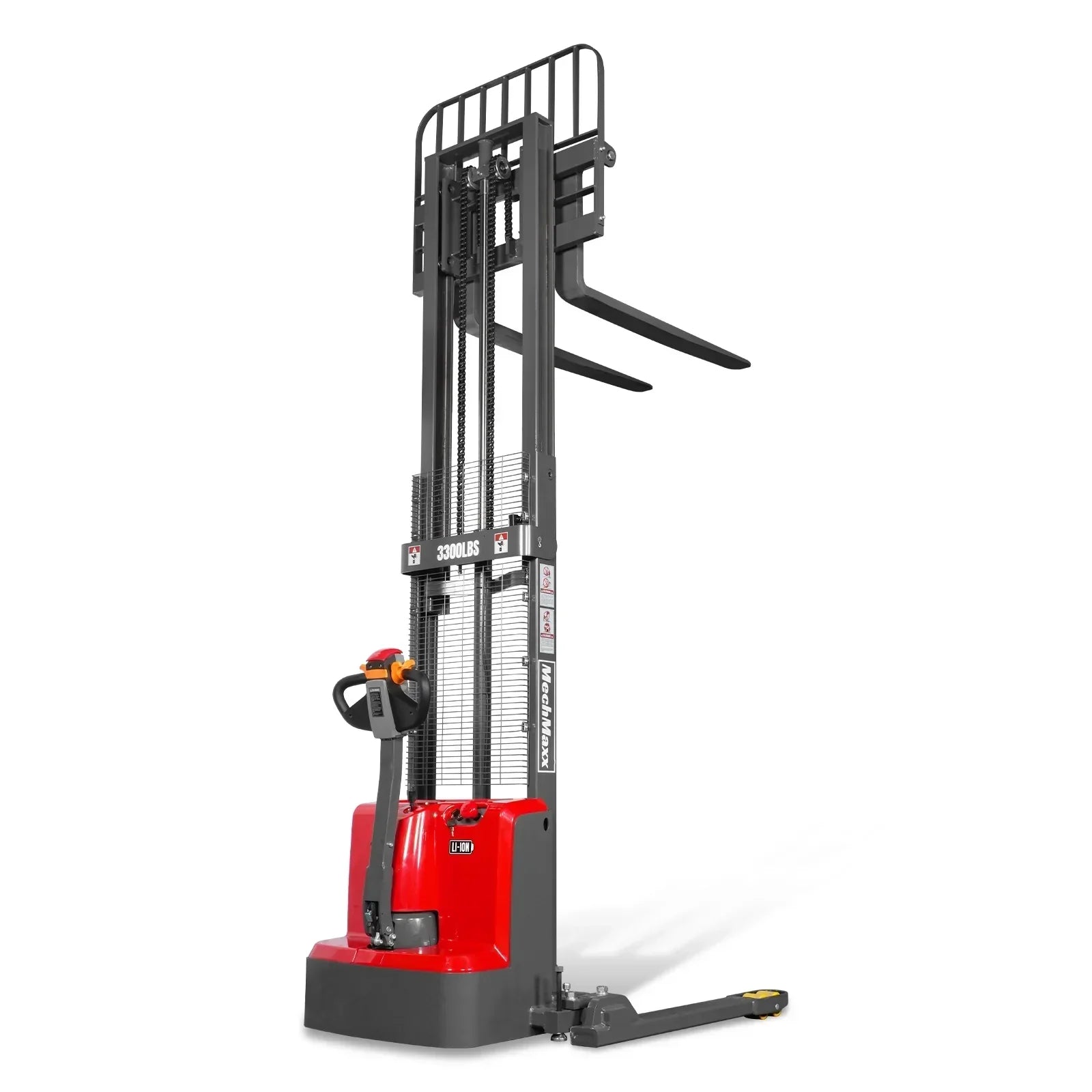

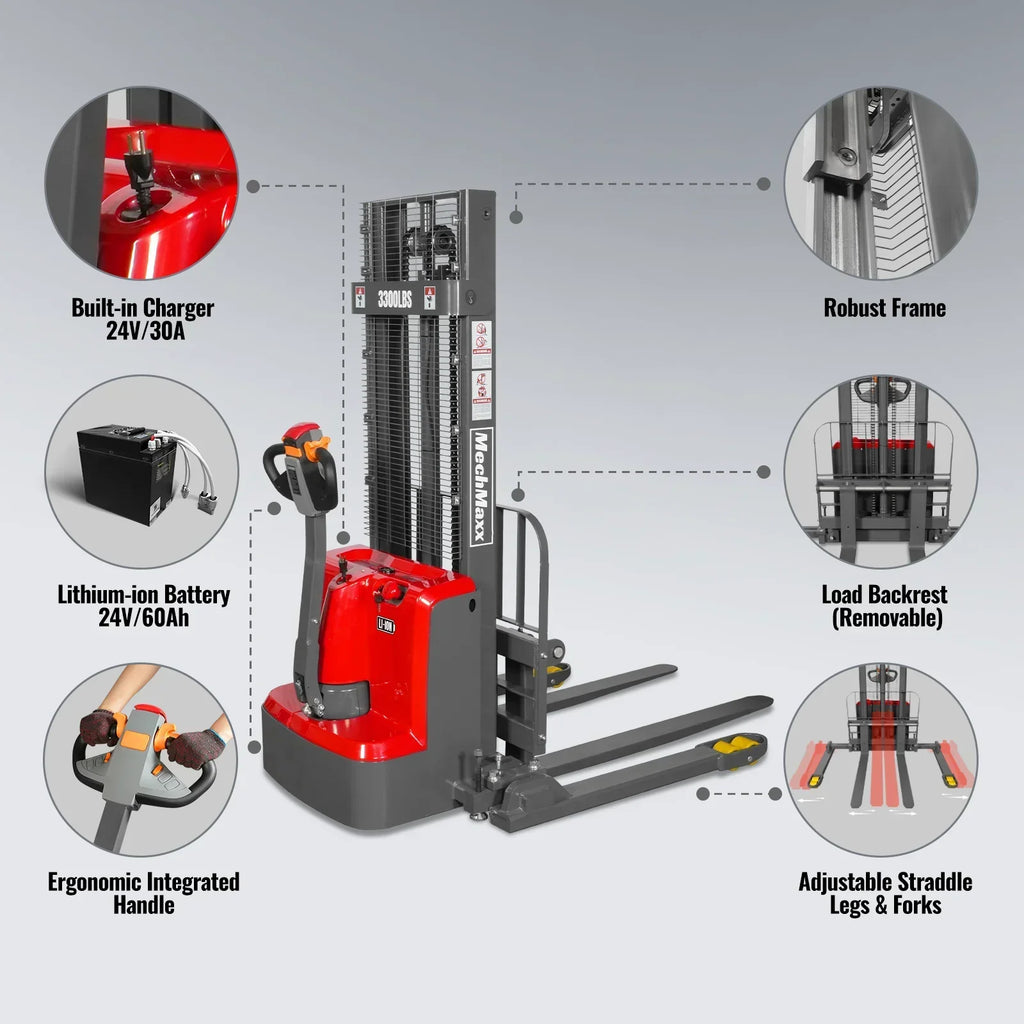

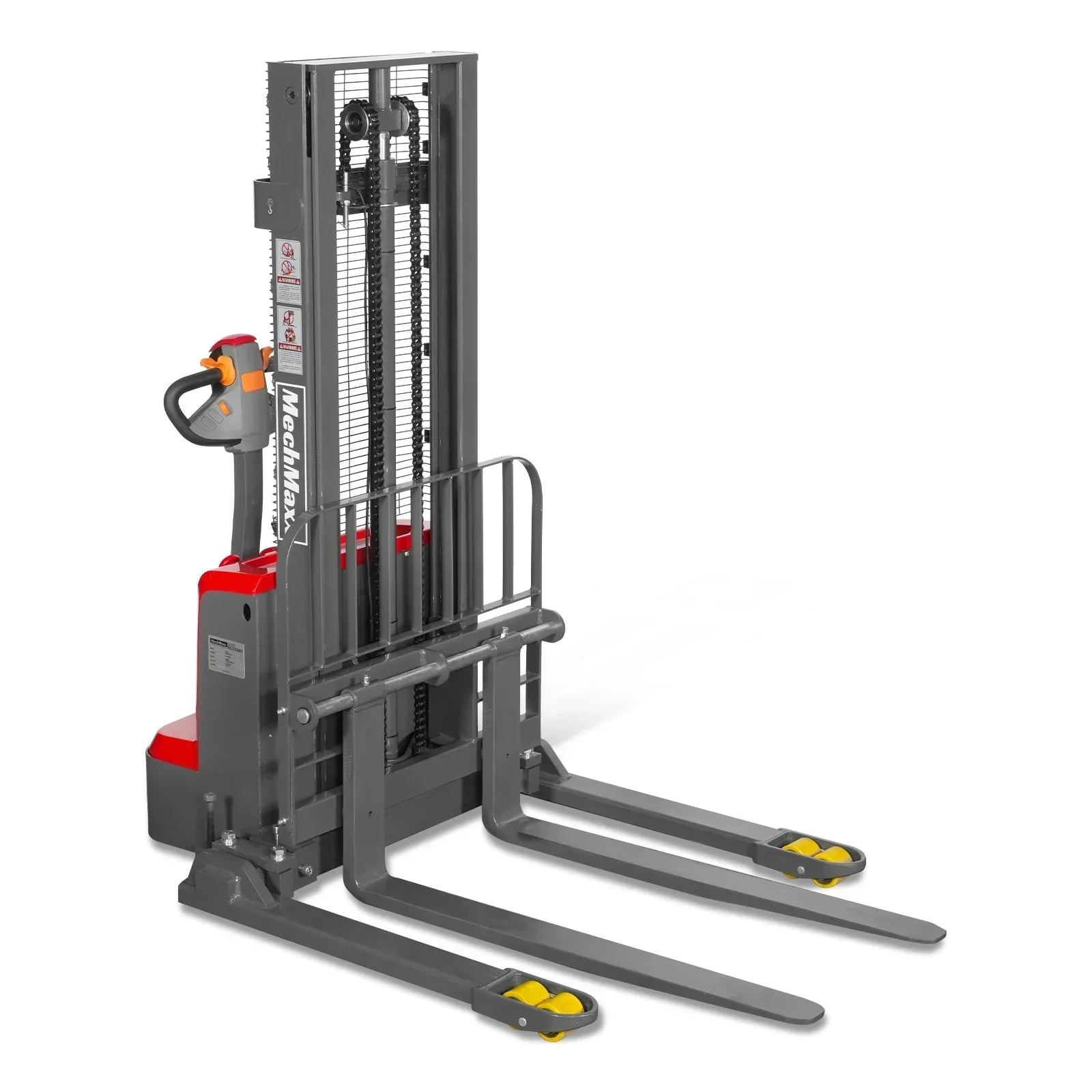

3300lbs Lithium-ion Electric Straddle Stacker, 98" Lift, Adjustable Legs & Forks, F33-98S
3300lbs Lithium-ion Electric Straddle Stacker, 98" Lift, Adjustable Legs & Forks, F33-98S
| Load Capacity | 3300 lbs | Turing Radius | 53 in |
| Operator Position | Walkie | Lifting Speed (laden/unladen) | 18.1/26.8 fpm |
| Tire Type | Polyurethane | Lowering Speed (laden/unladen) | 22/19.3 fpm |
| Overall Length | 71.5 in | Driving Speed (laden/unladen) | 2.5/2.6 mph |
| Max Lift Height | 98 in | Max Gradeability (laden/unladen) | 3/8% |
| Min Lift Height | 2.4 in | Service Brake | electromagnetic |

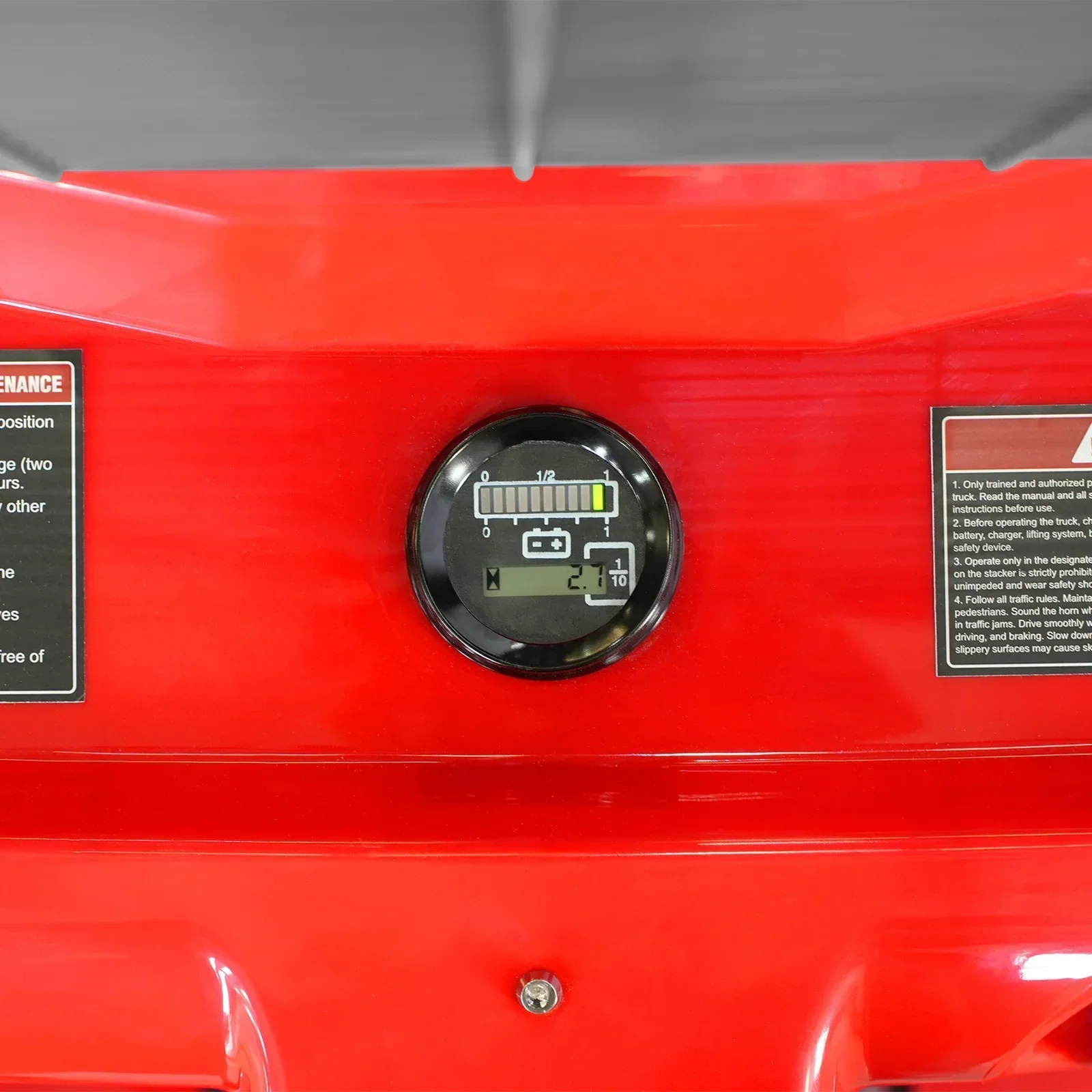

| Mast Height (raised) | 120 in | Battery | 24V/60Ah Maintenance-free Li-ion Battery |
| Mast Height (lowered) | 72 in | Charger | 24V/30A Built-in |

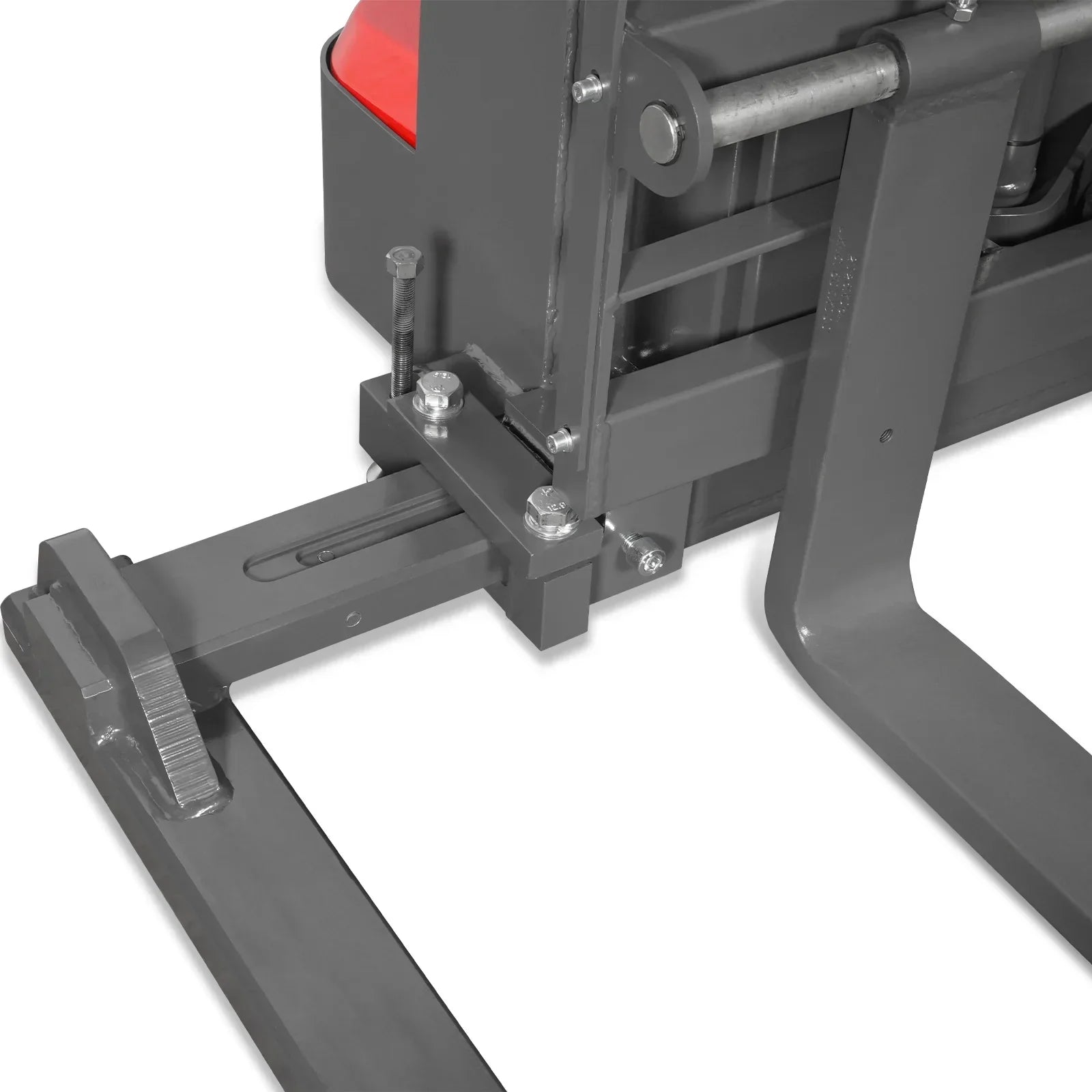

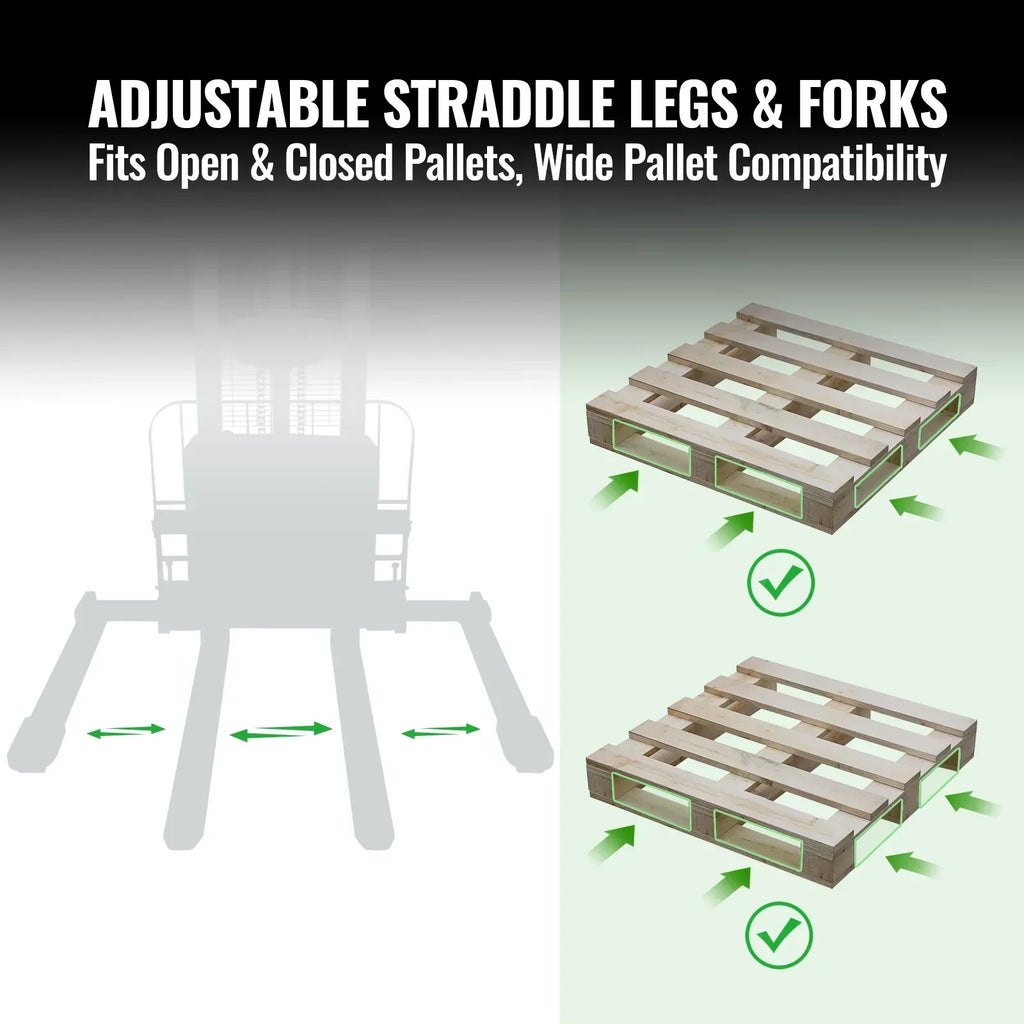

| Straddle Leg Width (I.D.) | 35.4 - 51.2 in | Controller Brand | Curtis |
| Straddle Leg Width (O.D.) | 43.3 - 59 in | Drive Motor | 0.75 kW DC |
| Load Center | 23.6 in | Lift Motor | 2.2 kW |

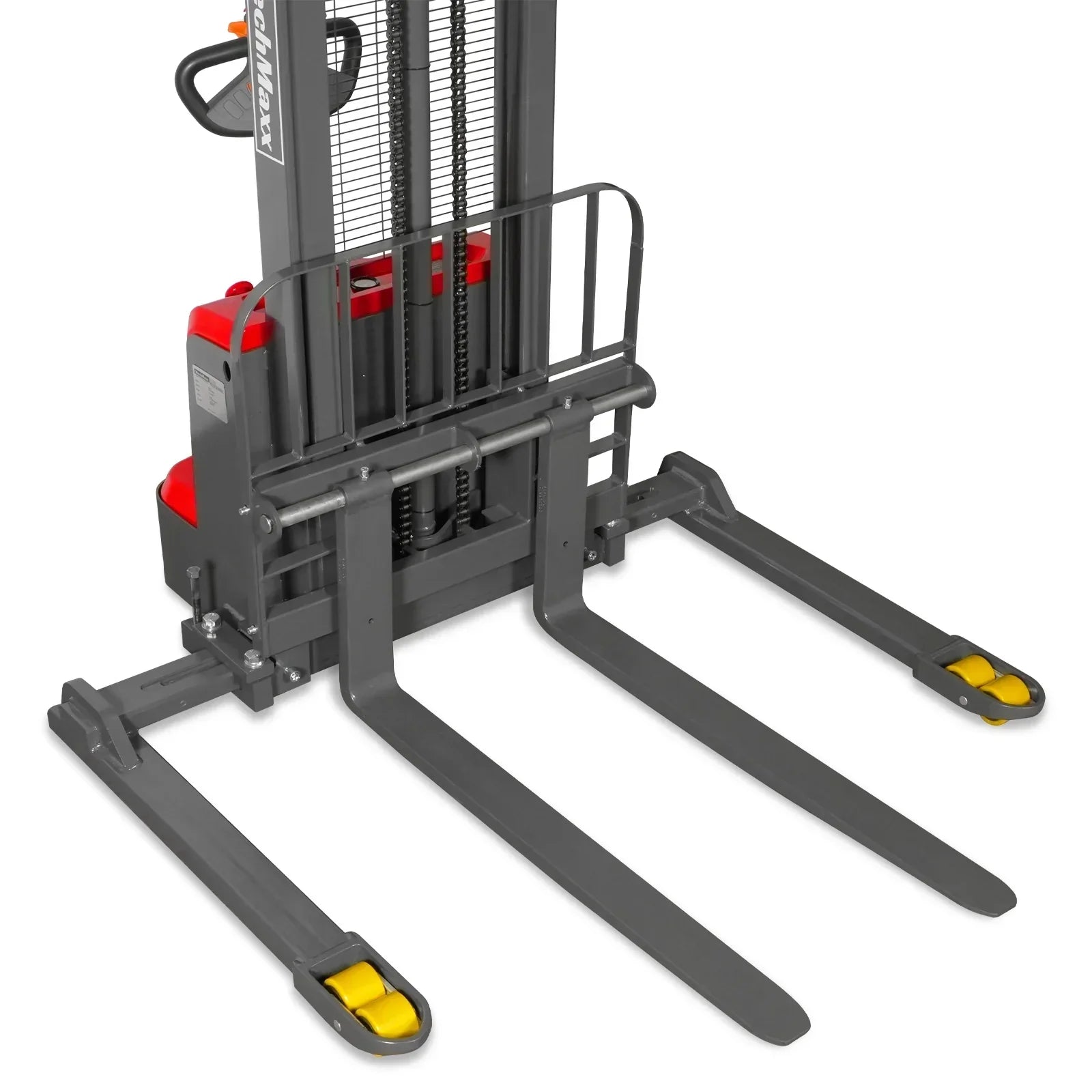

| Fork Overall Width | 8.3 - 33.5 in | Packing Size (LxWxH) | 43 x 37 x 77 in |
| Fork Size (TxWxL) | 1.4 x 4 x 45.3 in | Weight (N.W/G.W.) | 1300/1455 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
